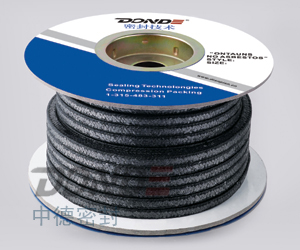

Gland Packing For High Temperature and
High Pressure Flange
Item No.:ZD-P1010T
Description:Graphite
yarn reinforced with inconel wires as a base,re-enforced in four corners
with high strength carbon fiber.The packing is lattice braided as carbon
achieving maximum strenghth.It's a high strength packing,resists
extrusions,ideally suited to the high temperature and high pressure
flange.
Application:This packing has applications especially suited to the
petro-chemical & refining,pump & paper,sugar and power generation.
Main Specification:
|
Temperature |
-200℃-+650℃（In the steam） |
|
-200℃-+455℃
(in the air） |
|
Pressure |
28MPa |
|
PH range |
0-14 |
|
Linear speed |
15M/S |
|
Size |
3*3mm-60*60mm（or as request） |
How to Order：
|
Item |
Order Code |
|
High Temperature and High Pressure Flange
Sealing Packing |
ZD-P1010T |
|
Special Packing For High Pressure Steam
Pump |
ZD-P1011T |
|
Reciprocating Pump Gland Packing |
ZD-P1020T |
|
Abrasion Resistant Gland Packing |
ZD-P1021T |
|
Special Packing for Food and Pharmacy
Industry |
ZD-P1022T |
|
Gland Packing for Tanker Container |
ZD-P1041T |
For more information,please contact with
us directly,thanks！
|
