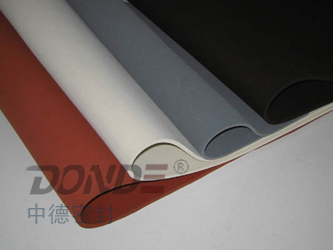

Rubber
Sheet
Item No.:ZD-GS2030
Description:Rubber
sheet has excellent dynamic and rebound properties.Rubber sheet is
available in a wide range of harnesses from 30°to 90°shore A.Rubber
sheet has good resistance to acids, alkalis and salts.Rubber sheet is
not recommended for use in areas where rubber sheet could come in
contact with oils and hydrocarbons.Rubber sheet is used for potable
water applications.Rubber sheet has many style:rubber sheet coated
fabric,abrasion resistant rubber sheet,rubber sheet for diaphragms,butyl
rubber sheet,chloroprene rubber sheet(CR),nitrile rubber sheet,EPDM
rubber sheet,hypalon rubber sheet,hypalon rubber sheet,non slip rubber
sheet,NBR, SBR, EPDM.
Application:The
rubber sheet
can be cut into various gaskets, used in chemicals, elections,
fire-resisting and food. They also can be used as sealer, buffer rubber
ring, rubber mat, sealing strip and for the decoration of flights of
step and ground of hotel, port boats and ships, vehicles etc.
Main Specification：
|
Style |
Products |
Color |
g/cm3 |
Hardness sh |
Elongation % |
Tensile Strength |
Temp ℃ |
|
BR |
Black
rubber sheet |
Black |
1.6 |
70±5 |
250 |
3.0Mpa |
－5~＋50 |
|
RC |
Black
rubber sheet with cloth insert |
Black |
1.6 |
70±5 |
220 |
4.0Mpa |
－5~＋50 |
|
NBR |
Nitrile rubber sheet |
Black |
1.5 |
65±5 |
280 |
5.0Mpa |
－10~＋90 |
|
460SBR |
Styrene-butadiene rubber sheet |
Black/red |
1.5 |
65±5 |
300 |
4.5Mpa |
－10~＋90 |
|
460CR |
Neoprene rubber sheet |
Black |
1.5 |
60±5 |
300 |
4.5Mpa |
－10~＋90 |
|
460EPDM |
Ethylene propylenediene rubber sheet |
Black |
1.4 |
65±5 |
300 |
8.0Mpa |
－20~
＋120 |
|
460SC |
Silicone rubber sheet |
White |
1.2 |
50±5 |
400 |
8.0Mpa |
－30~
＋180 |
|
460VITON |
Fluorine rubber sheet |
Black |
2.0 |
70±5 |
350 |
8.0Mpa |
－50~
＋250 |
|
460RO |
Oil-resisting rubber sheet |
Black |
1.5 |
65±5 |
280 |
5.0Mpa |
－10~＋60 |
|
460RCH |
Cold &
heat-resisting rubber sheet |
Black |
1.6 |
65±5 |
280 |
4.5Mpa |
－20~
＋120 |
|
460RAA |
Acid &
alkali-resisting rubber sheet |
Black |
1.6 |
65±5 |
280 |
4.5Mpa |
－10~＋80 |
|
460RI |
Insulating rubber sheet |
Black |
1.5 |
65±5 |
300 |
5.0Mpa |
－10~＋80 |
|
460RFI |
Fire-resistance rubber sheet |
Black |
1.7 |
65±5 |
280 |
4.5Mpa |
－5~＋60 |
|
Available Size:
Wedth:1000mm，1200mm，1500mm，2000mm
Thickness：0.2mm-60mm
50KG/Roll，；
We can also make cloth insert as request,but the thickness
t>=0.5mm |
