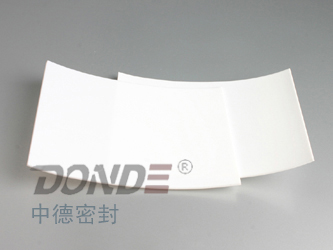

PTFE(teflon)
Sheet
Item No.:ZD-GS1600
Description:ZD-GS1600
Pure
PTFE
sheets are made by high molecular
compound of teflon.excellent in chemical stability, corrosion resistant,
lubrication ,electric insulation , antiaging and also it has low
friction coefficient.ZD-GS1600
PTFE sheets are used to cut
PTFE gasket,PTFE srip,ect.
Modified
PTFE Sheet
Item No.:ZD-GS1610
Description:ZD-GS1610
contain some fibreglass,graphite,bronze to improve the character of pure
PTFE.
Main Specification：
|
Properties |
Unit |
Result |
|
Apparent
density） |
g／cm
3 |
2.10~2.30 |
|
Tensile
Strength(min) |
MPa |
15.0 |
|
Crack
Elongation(min) |
% |
150 |
|
Dielectric
Strength(min) |
Kv/mm |
10 |
Size of PTFE Sheet：
|
Length(mm)×Width(mm) |
Thickness(mm) |
|
Nominal |
Tolerance
|
|
150×150 |
1.0~100 |
±0.30~±0.50 |
|
250×250 |
1.5~100 |
±0.30~±0.50 |
|
300×300 |
1.5~100 |
±0.30~±0.50 |
|
450×450 |
1.5~100 |
±0.30~±0.50 |
|
600×600 |
2~100 |
±0.30~±0.50 |
|
800×800 |
2~100 |
±0.30~±0.50 |
|
1000×1000 |
3~100 |
±0.30~±0.50 |
|
1200×1200 |
3~100 |
±0.30~±0.50 |
|
1500×1500 |
5~100 |
±0.50~±0.80 |
|
1600×1600 |
5~100 |
±0.50~±0.80 |
|
2000×1000 |
5~60 |
±0.60~±1.0 |
|
1800×1800 |
5~60 |
±0.60~±1.0 |
Special size can be made as request.
